LS1 Billet CNC Alternator Bracket With Billet Idler Pulley

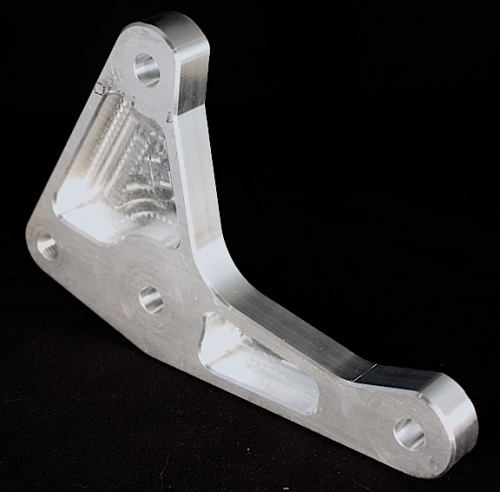

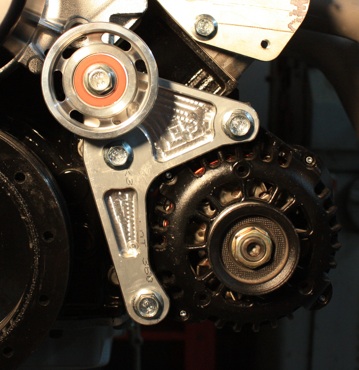

Billet alternator bracket

This adapter bolts in place of the factory unit and accepts factory and most aftermarket alternators.

Machined from plate 6061-T6 aircraft grade aluminum.

This bracket is significantly stronger than the factory cast aluminum piece.

Designed to ride on the Camaro/GTO belt line.

Some shimming may be required do to the differences in aftermarket and rebuilt alternators.

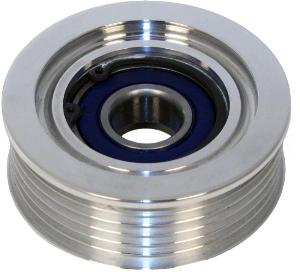

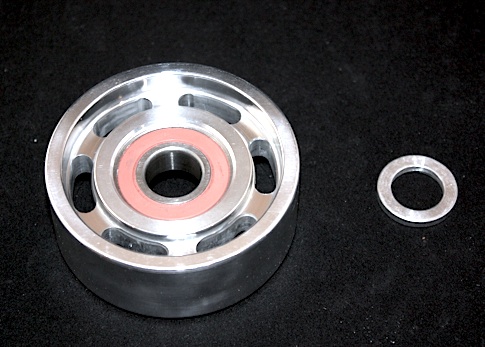

Billet Idler Pulley

Billet 6061 T-6 Aluminum.

Replaceable bearing and snap ring.

Same high spec bearing as GM LS3.

(12x17x40mm)

Comes with snap ring and bearing installed.

Pulley is Made in the USA.

Fits 6-ribbed serpentine belts Diameter 3.0" ,Width 1 5/16"

Alternator Only

If you are only running the alternator and not a power steering pump, please check the alternator only box

When running only the alternator, we will supply a 6 rib pulley, and counter sink the holes to use Allen head bolts, this allows for more belt clearance.

This feature is a great improvement over the stock bracket.

"
